Exploiting iOS Local Storage with Corellium

How to examine, detect and exploit sensitive information being stored by an iOS application
Technical Writeups
Exploiting iOS Local Storage with Corellium

Storing data is essential to many mobile applications. What data is being stored? How is the data being stored? How is my data being protected? These are all great questions. In this blog post, we are going to demonstrate how to examine, detect and exploit sensitive information being stored in iOS app local storage. So, Let’s get this party started.

When it comes to an iOS device, the following are some common ways of storing data:

  • Keychain
  • NSUserDefaults
  • iOS Application Databases
  • Plist Files (Property Files)

We will be using the intentionally vulnerable iOS application known as DVIA-2, which can be accessed here. Utilizing Corellium virtualized devices along with the DVIA-2 application, we will check frequent iOS local file storage locations and how easily that data can be compromised.



Keychain Data Storage

iOS Keychain serves as a repository for application data, passwords, keys and certificates. While keychain is used to store entries that iOS applications require, when used incorrectly can pose a great security risk. In an iOS device these entries are kept in a local encrypted database. However, open-source tools are now available that can dump the iOS keychain in plain text. Objection (Runtime Mobile Exploration Toolkit) along with Keychain Dumper are excellent examples of how easy it can be to retrieve this data.

Keychain-Dumper is a great tool if you want to dump the entire device keychain, and I recommend taking a look at using it with your Corellium device in the future. For this blog post we are going to focus more specifically at pulling keychain data from a specific running application (DVIA-2), in this case Objection will be a quicker option.

From your virtual iOS Corellium device install and launch the DVIA-2 application

Navigate to the Local Data Storage menu and select Keychain:



iPhone screen with keychain DVIA interface



Once data has been saved in the application Keychain challenge, we will setup the environment to connect your local machine to the Corellium virtualized devices.

For the Cloud version of Corellium ensure you have the VPN installed and running along with USBFlux to interact with the virtual device over USB.

In order to use Objection you will need to know the package name of the application you are attempting to hook into. This can easily be retrieved within the Apps tab of the Corellium platform.

DVIA_Installed

Once you have the package name of the target application, you can use the following command with Objection to hook the running process from your Corellium device.

objection -g com.highaltitudehacks.DVIAswiftv2 explore

When hooked into the running application (DVIA-2), you can use the following command to dump the keychain for the associated application:

ios keychain dump

iOS_Keychain_Dump

As we discussed at the beginning of this section, objection is used to dump the keychain items that are accessible only by the running application. This method is typically used in mobile pentesting activities. Keychain dumper is an alternative option if you want to dump the entire device keychain for analysis.

NSUserDefaults Data Storage

The iOS NSUserDefaults system allows an application to customize its behavior to match a user’s preferences. For example, an application can store a user’s preference of theme, unit of measurement, or general application customization. When used insecurely, NSUserDefaults can store sensitive data in plain text making it easily accessible to attackers.

From your virtual iOS Corellium device, install and launch the DVIA-2 application.

Navigate to the Local Data Storage menu and select UserDefaults:

Fill in the required textbox and Save the data to the NSUserDefaults.



UserDefaults_DVIA

In order to pull the NSUserDefaults for an application, we will be once again using Objection. For detailed steps, see the process above.

objection -g com.highaltitudehacks.DVIAswiftv2 explore

When hooked into the running application (DVIA-2), you can use the following command to dump the NSUserDefaults:

ios nsuserdefaults get

NSUserDefaults_Objection

While the NSUserDefaults can be an excellent location to store preferences to enhance the user experience for an application, using it incorrectly to store potentially sensitive data can greatly increase the overall risk of your application and user data.



iOS Application Databases

iOS applications tend to store all sorts of data. This data typically ranges from public information to highly sensitive information. Every iOS application has their own data directory which, by default, is only accessible by that same application. This is known as sandboxing

With a jailbroken iOS device, the entire iOS filesystem is available to be accessed. The ability to access the root iOS file systemfilesystem poses a risk to applications that store sensitive data in plain text within their local data directories. Databases are one common way data is stored. Below using Corellium, we will show you how to easily access those databases and retrieve stored sensitive data.

There are two main ways in identifying where the iOS data directory is for any given application. The first is by using Objection, as we have in the previous two steps, to check the applications paths.

objection -g com.highaltitudehacks.DVIAswiftv2 explore

Once you are hooked into the application, you can run the following command to show the environment paths

env

ENV_Objection

Alternatively, if you want to avoid using Objection to search for local databases, you can use the Files tab within the Corellium interface and navigate to the following directory:

/var/mobile/Containers/Data/Application/

Once you are here, there are unique IDs for every application. One way you can identify which ID is related to the application you want is based on the Last Modified column, using that date to match when you installed the application on the device can easily help identify which ID folder you require.

Now that we are in the applications data directory, we can look for Databases and search those for potentially sensitive information. This can involve searching manually through the files or searching for file extensions relating to databases (.sqlite, .sqlite3, .cblite2, .realm, etc).

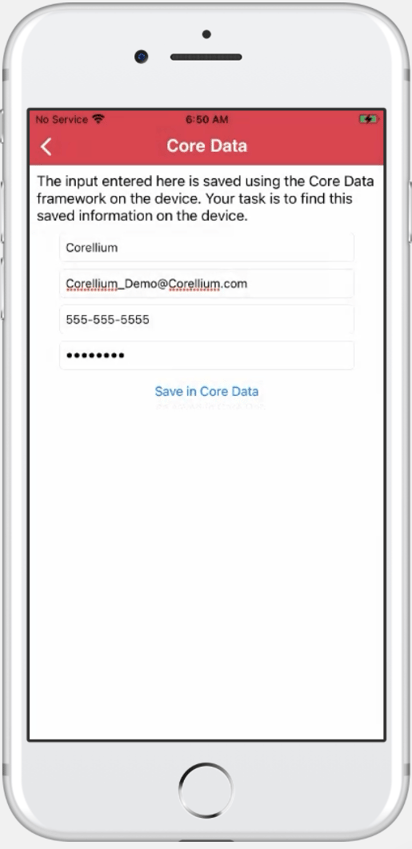

Navigate to the Local Data Storage menu within the DVIA-2 application and select Core Data.

Fill in the required textboxes and Save the data to a local database.

Core_Data_DVIA

The saved Core Data database is within the applications data directory under the following path.

<Application ID>/Library/Application Support/

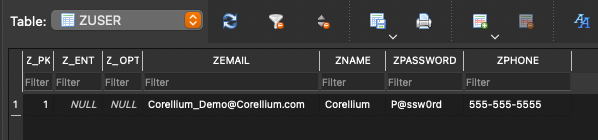

From the Corellium interface, you can easily download that file to view on your local machine either using a DB viewer or command line operations.

Core_Data_DB_Browser



iOS Property List Files

iOS applications contain property files (PLIST) both within the application bundle (IPA) and, in some cases, within the applications data directory. PLIST files contain various settings, configurations and properties for the given application. In some cases they can also contain data stored by the application similar to a database above.

From your virtual iOS Corellium device install and launch the DVIA-2 application.

Navigate to the Local Data Storage menu and select PLIST.

Fill in the required textbox and Save the data to a local PLIST file.

Plist_DVIA

Once you have filled in the information within the challenge screen you can navigate back to the application data directory as we did in the last step and then into the Library directory.

/var/mobile/Containers/Data/Application/<Application ID>/Library

Remember, if you don’t know the ID to get into the specific application, you can use the Last Modified date column within Corellium or use Objection as we did above to identify that ID.

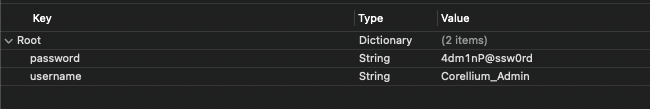

Within this directory you will see a userinfo.plist file that can be downloaded from the Corellium platform and then reviewed on your local machine.

Local_Plist_Xcode

While a PLIST file is especially an XML file, it can be difficult to read with your standard text editor. There are a couple of additional options to easily read these files if you are having difficulty.

  • Xcode – If you have a mac, Xcode by defaultdefauly can open and read PLIST files
  • Plutil and plistbuddy – These are built in tools on mac for not only reading PLIST files but modifying if required
  • Objection – As we used above on multiple occasions Objection has a command to read PLIST files, see below for the command
ios plist cat <userInfo.plist>



Conclusion

The steps we discussed above are used to examine iOS app local storage and detect potential security risks. These techniques can be used by mobile pentesters, appsec professionals and development teams. Corellium makes all of this testing seamless with access to the root filesystem for any iOS device and simple integrations with third party tools to perform deeper analysis.
